4 Axles Removable Gooseneck Lowboy Trailer

The lowboy trailers produced by Chengda are of high quality, strong and durable, and there are many different models to meet your needs. Chengda has more than ten years of experience in lowboy trailer manufacturing, and customers in various countries are full of praise for us.

  Contact Now
Product Details

Product Description:

Gooseneck structure: The gooseneck is detachable, the loading platform sinks, the center of gravity is lowered, the loading space is large, and the load capacity is strong. Its main purpose is to transport large machinery and equipment.

Lowboy trailers usually use a concave beam frame (or well-type), the front of the frame is a gooseneck, the front of the gooseneck is connected to the tractor head, the low part in the middle of the frame is a cargo platform, and a detachable gooseneck lowboy trailer is generally Loading and unloading work is carried out from the front end of the lowboy trailer.

Our gooseneck lowbed trailer mainly carries heavy machinery equipment, such as excavators, dozers, and other construction machinery equipment.

We are able to make the 2/3/4 axles removable gooseneck low bed trailers and 6 axles heavy duty gooseneck trailers, with the capability of 60/80/100/120/150 ton.

4 Axles Lowbed Trailer.jpg

Specification

Type

4 Axle Lowbed Semi Trailer

Loading capacity

80ton

Dimensions

13000x3000x1600mm

Main Beam

Height:500mm,Upper plate:18mm, Middle plate:12mm, Bottom plate:20mm, Material:Q345B steel

Platform

3mm diamond plate

Axle

4axles 13T/16T ,FUWA/ BPW/ ZY Brand

Gooseneck

Optional

King pin

JOST brand or Chinese brand 2.0 or 3.5 inch

Landing gear

JOST brand or Chinese brand 28tons

Suspension

Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Steel Spring

90(W)mmx13(Thickness)mmx10 layers

Tire

1.00R20 or 12R22.5   16 pieces

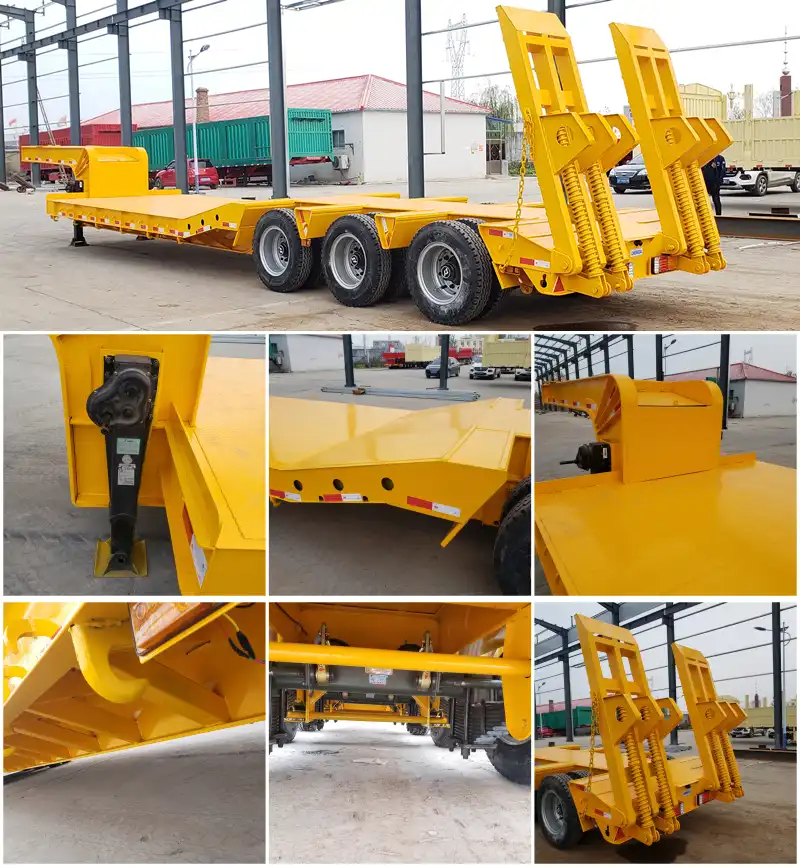

Lowboy Trailers Details

Packing & Delivery

We work with many cargo agents, our company can give you the most suitable, cheapest and safest shipping method according to the quantity of trailers you require.

Our company mainly provides 3 kinds of shipping ways:

  • Ro-ro shipment

  • Bulk shipment

  • Container shipment.

Feedback

Flatbed trailer feedback

FAQ:

1. Delivery time:

Generally, it takes 7-10 days through freight , if we have stock. If not, our factory usually take 10-15 days to produce and then we will arrange the shipping.

2. What's your minimum quality? 1 Set

3. What should I do if the tires of the truck are attached with nails?

If the tires are attached with nails, do not pull on the nails by hand, otherwise they will leak easily. Do not hit the brakes, hold the steering wheel firmly and stay straight to avoid collisions with road obstacles and traffic.

After parking in a safe place, check the tires in time. If the tie is severe, change the tires on time. If there is no problem, go to the repair center and fix it in time.
