2 Axles 35 Tons Powder Tank Semi Trailer

The tank body, accessories and internal materials of this powder tank semi trailer adopt large-scale CNC plasma cutting machine, laser cutting machine, CNC punching machine and other equipment, with small errors and high precision. And the "spray + powder spray" electrostatic powder coating process is used, and the hardness of the coating reaches H level, which can prolong the service life.

Contact Now

Product Details

2 Axles 35 tons powder tank semi trailer is one of our best seller model of bulk powder tank cement semi trailer. This powder tank semi trailer is manufactured by chengda, which condenses more than ten years of manufacturing experience and advanced technology of chengda. The tank body can load about 30-35 cubic.The tank body has many kinds of materials for you to choose, and equipped with China famous brand engine and air compressor, durable and stable.

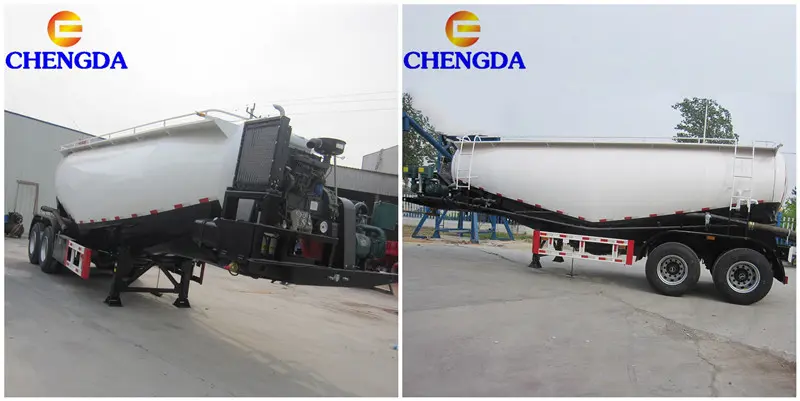

2 Axles 35 tons powder tank semi trailer

The powder tank semi trailer is mainly used to transport cement. This semi-trailer solves the problem of transporting cement. Since bulk cement is transported in tanks, other bags are no longer needed, so manpower can be saved in the transportation process, no need to be moved around, which reduces the time and cost of loading and unloading, and improves labor productivity. Save raw materials and reduce transportation costs.

Specification

Type	2 Axles 35 tons powder tank semi trailer
Volume	35 Cbm
Dimensions	11000x2500x3900mm
Main Beam	Height:500mm,Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Tank thickness	4 mm for tanker body, 6mm for front and end cap, Material:Q235 steel
Axle	3axles 13T/16T ,FUWA/ BPW/ ZY Brand
Air compressor	Standard 10 Cbm/min
King pin	JOST brand or Chinese brand 2.0 or 3.5 inch
Landing gear	JOST brand or Chinese brand 28tons
Suspension	Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Steel Spring	90(W)mmx13(Thickness)mmx10 layers
Tire	12.00R22.5 or 315/80R22.5 12 pieces

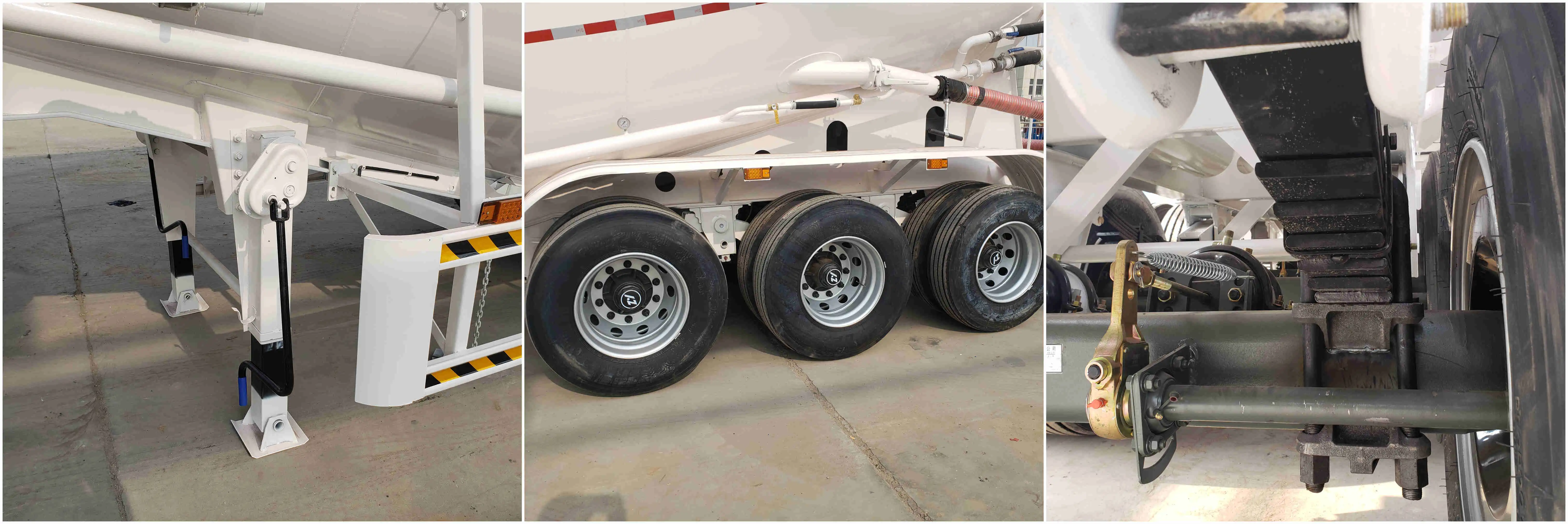

cement tank semi trailer detail

Advantage

1. There is an air release valve under the tank body of the powder tank semi trailer. After ash, the air can be directly released on the ground, and it is not necessary to go to the top of the tank again to release air, which is convenient for use.

2. The compressed air pipeline adopts flexible connection, which is convenient for maintenance and valve replacement. The engine uses Weichai Huafeng, and the air compressor uses Bohai, a well-known brand, with reliable quality assurance.

3. The ash discharge pipe assembly of the powder tank semi trailer uses a better butterfly valve, and the discharge speed is faster, reaching 1.2 cubic meters per minute. We will provide some wearing parts for free.

4. Strong main beam Q345 and tank Q235, the main beam and tank are firm and easy to operate. Our powder tank semi trailer are popular in Africa and Central Asia and Southeast Asia.

Packaging and Shipping

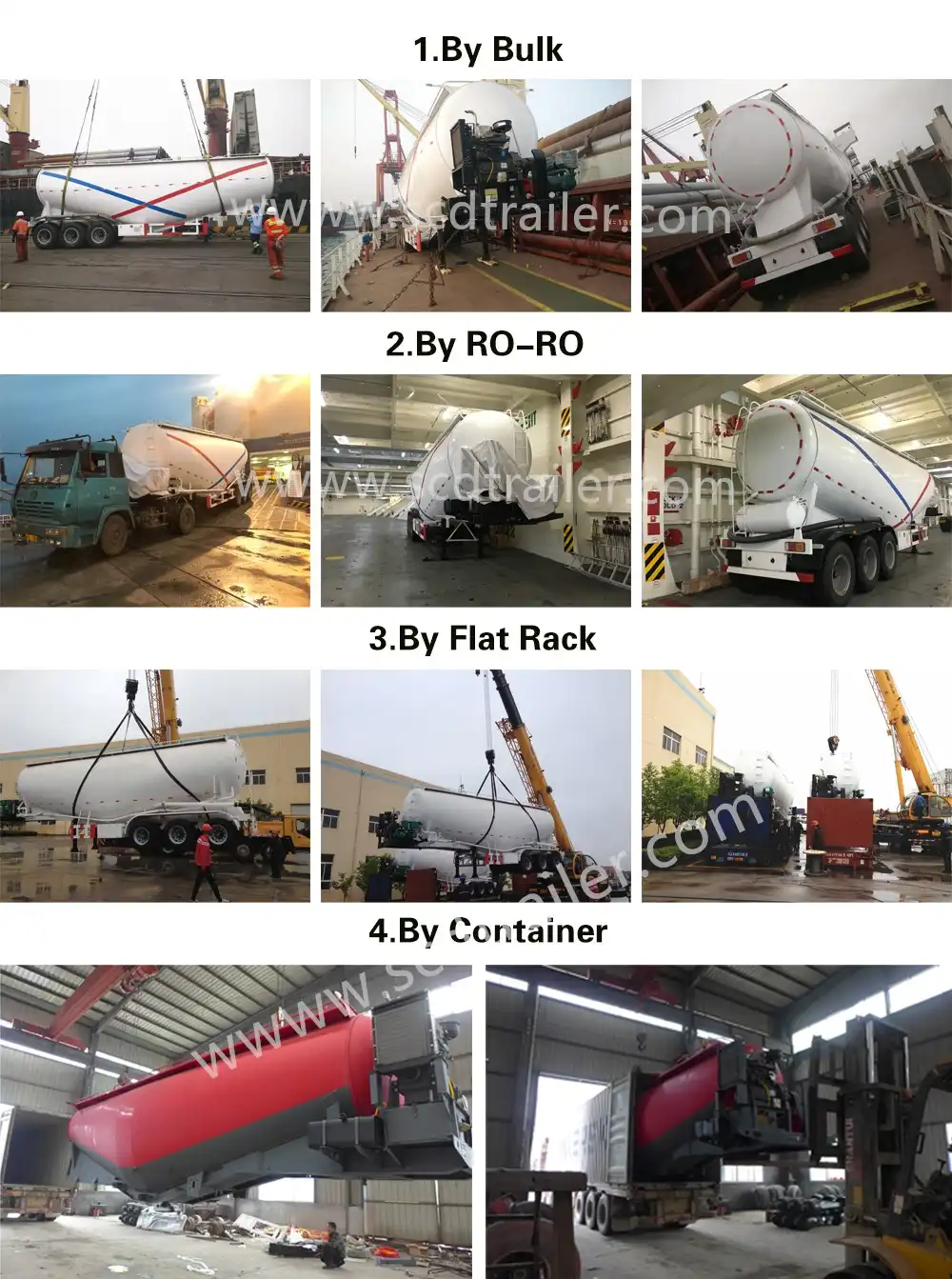

bulk cement tanker trailer shipment

Usually our powder tanker semi-trailers can be transported by ro-ro or bulk carriers or containers or pallets. Each of these modes of transportation has its own advantages.

Bulk shipping is the cheapest of these.

Ro-Ro transportation is a guaranteed way of transportation, which can protect the semi-trailer in good condition.

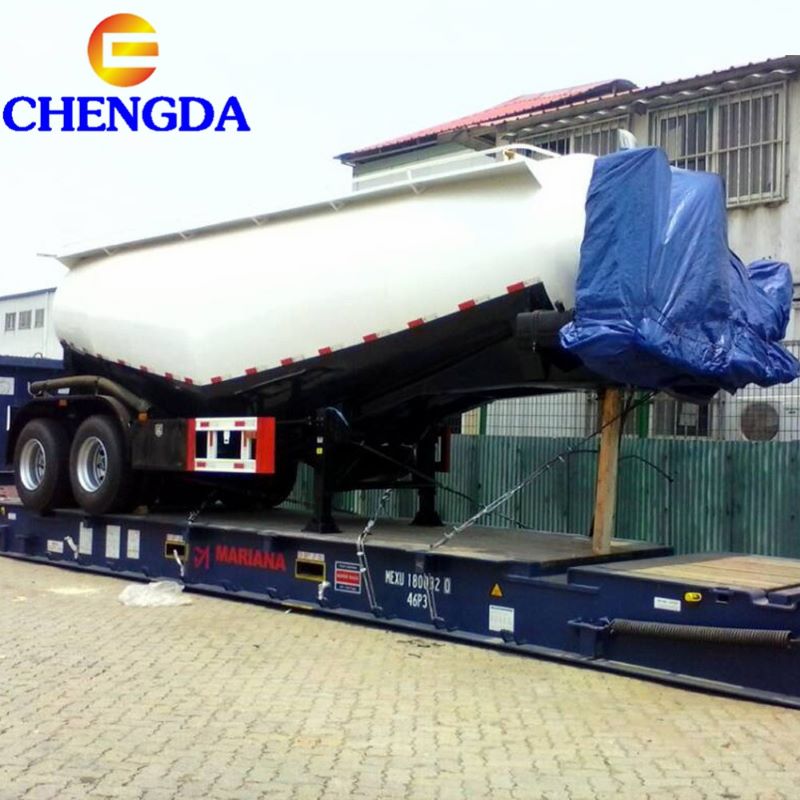

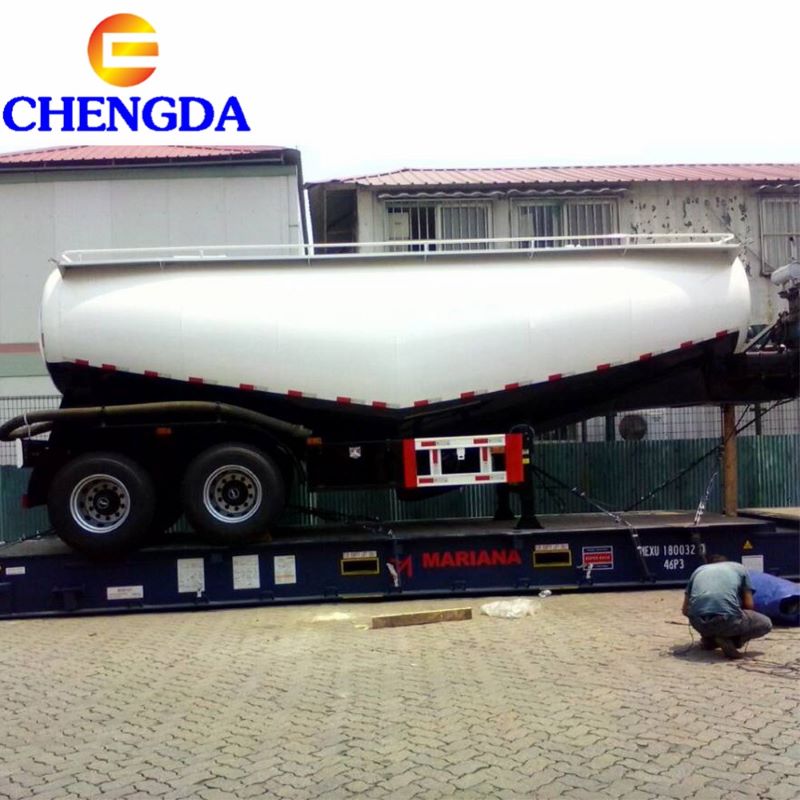

There is also flat container transportation, a cement semi trailer can be placed in a flat container. Container transportation is a 40-size container that can fit a cement trailer with a volume of less than 25 cubic meters.

Product form
