20 Foot Flatbed Trailer

9500 USD

Different Parameters, Different Price. Price Reference Only.

20 Foot flatbed trailer overall dimension is12500mm*2500mm*1530mm. It can transport 20ft/40ft container and 40-60T goods. Chengda also provides other type like extendable flatbed trailer, timber trailer for transport logs, sidewall trailer and fence trailer.

Brand: Chengda

Model Number: SCD9400P

Product Name: Flatbed Semi Trailer

  Contact Now
Product Details

20 Foot Flatbed Trailer Description:

  • The 20 foot flatbed trailers produced by Chengda are of high quality, strong and durable, In addition to this model of flatbed trailer, there are many different models to meet your needs.

  • Classified according to the number of axles, 2/3/4 axle flatbed trailers. According to the deadweight tonnage classification, 20/40/60 tons, etc.

  • The deadweight tonnage is not only related to the number of axles, but the model of the axle, the specifications of each part of the trailer frame, the type of the suspension system, and the specifications of the outriggers also affect the deadweight tonnage.

  • So you can tell us what cargo you want to transport so that we can provide you with a complete flatbed trailer parameters.

  • Chengda has more than ten years of experience in flatbed trailer manufacturing, it can bring you high-quality flatbed trailers and a good buying experience. Our 20 foot flatbed trailers have been strictly inspected from manufacture to export, and we will answer your questions in a timely and efficient manner.and customers in various countries are full of praise for us.

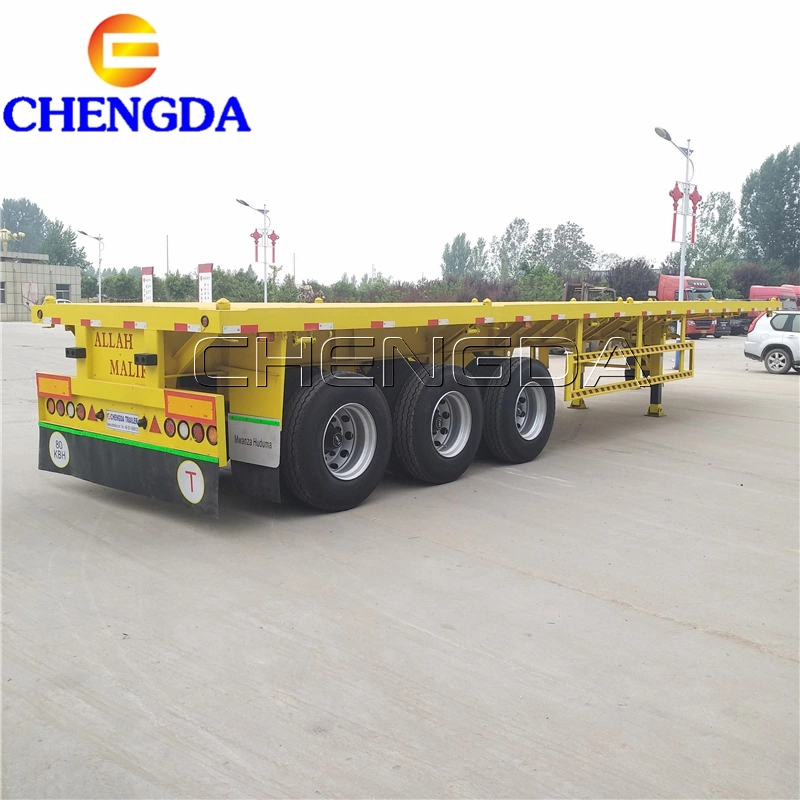

Flatbed Trailer Overview

Flatbed Trailer Specification

Type

3 Axle 40 ft Flatbed Container Semi Trailer

Loading capacity

40ton

Dimensions

12500x2500x1600mm

Main Beam

Height:500mm,     Upper plate:14mm,     Middle plate:8mm

Bottom plate:16mm,    Material:Q345B steel

Platform

3mm diamond plate

Axle

3axles 13T/16T ,FUWA/ BPW/ ZY Brand

Container lock

4,8,12 sets

King pin

JOST brand or Chinese brand 2.0 or 3.5 inch

Landing gear

JOST brand or Chinese brand 28tons

Suspension

Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Steel Spring

90(W)mmx13(Thickness)mmx10 layers

Tire

12.00R22.5 or 315/80R22.5   12 pieces

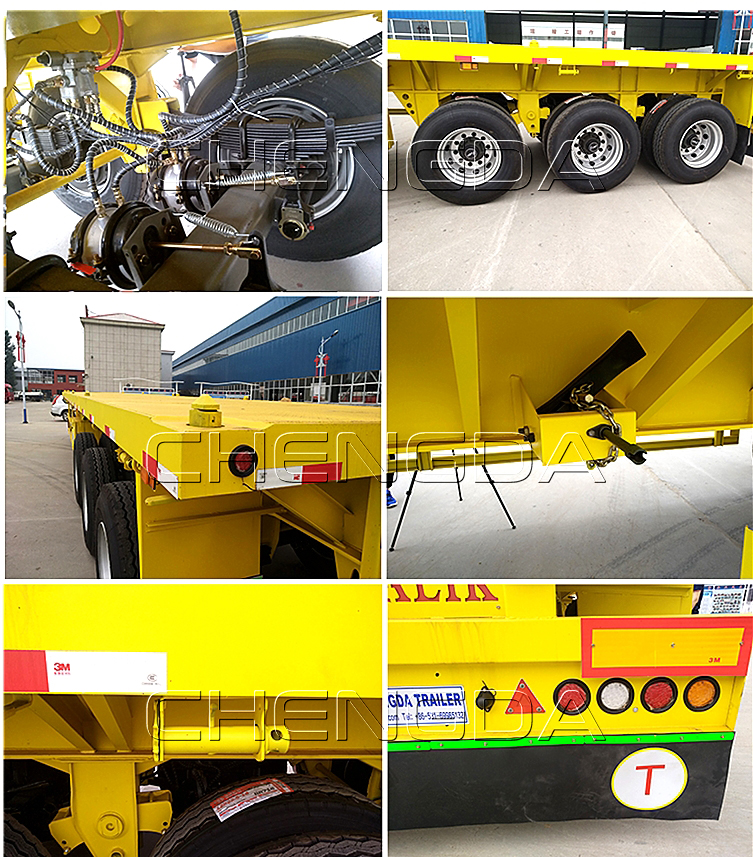

The main beam and the tires at the bottom. Side gurad,container locks,landing gears,spare tire carrier are all our flatbed trailer mainly details.

20 Foot Flatbed Trailer Details

Packing & Delivery Of 20 Foot Flatbed Trailer

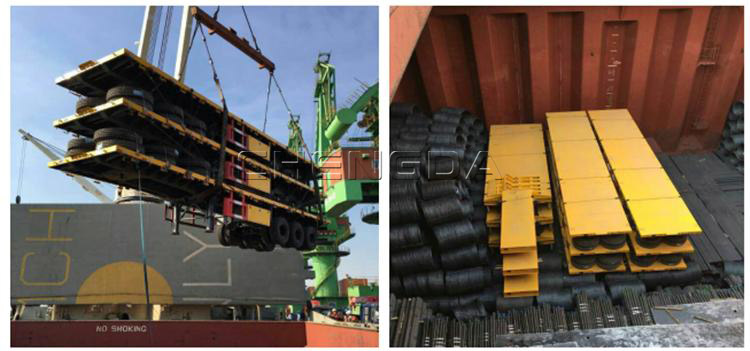

The shipping modes for our flatbed semi trailers are ro-ro, bulk cargo, and container shipment.

We always use the best packaging solution to decrease transportation cost and give your the very competitive price.

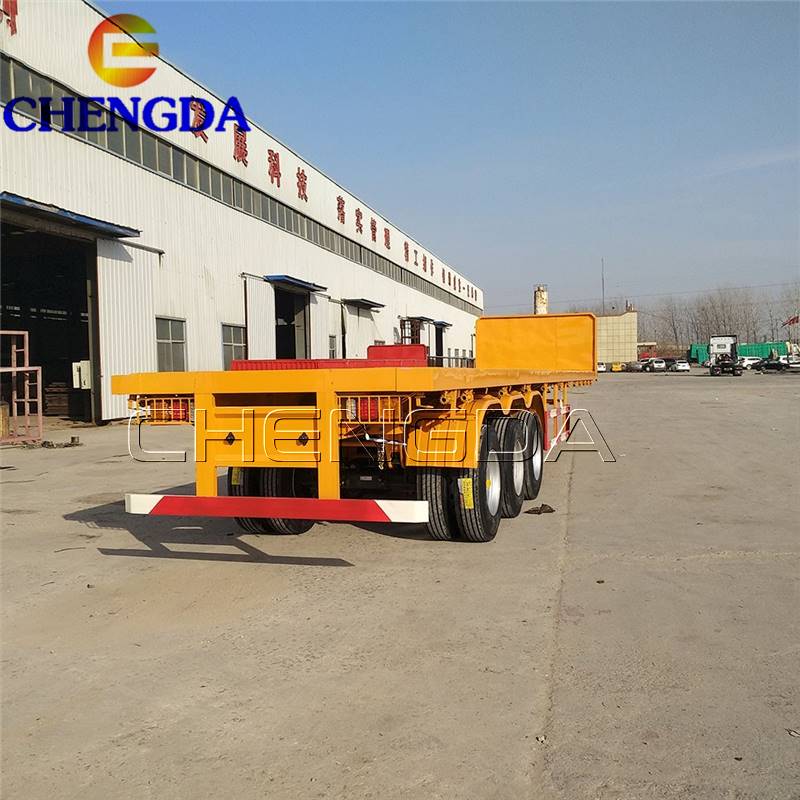

20 Foot Flatbed Semi Trailer

Feedback

We have over 20 years of experience in this field.

We have professional workers, and some of our technicians were graduated in German universities.
