Dumper 4x4

Dumper 4x4 belong to Sinotruk. the dump truck have many functions. The first one, it was made in urban construction muck transportation. Second, tipper truck can highway transportation and mining transportation. Third, the dump truck can engineering transportation. Howo dump truck emission standards is Euro2 or Euro3 or Euro4. The truck fuel type is diesel. About the dumper color, we can according to customer requirements to choose the most suitable color.

Contact Now

Product Details

The dumper 4×4 size is 7300*3500*2500mm, and it have 6tires, the tire model is 12R22.5. Dump truck box also have two models, first one is ordinary rectangular dump box, abother is u-ship, you can according to your preference or use to choose the most suitable dumper box.

Dumper 4×4

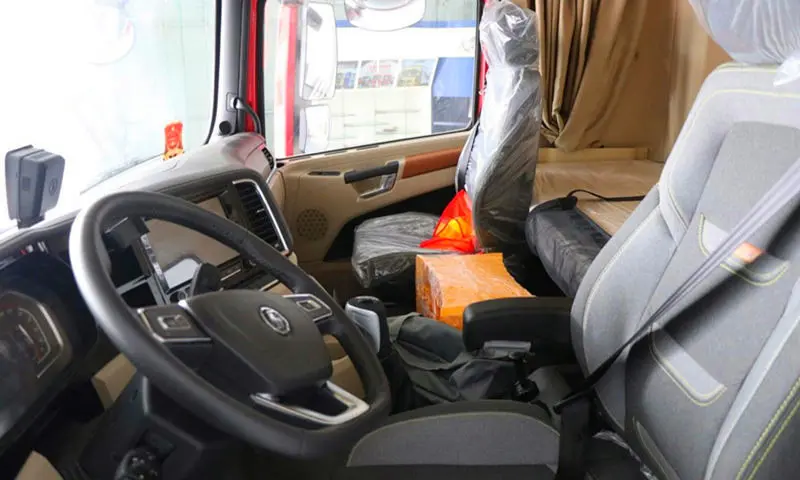

Cab of Howo dump truck

The cab model of dumper 4×4 is HW76, which is a suitable cab for howo dump truck, single sleeper with air conditioner, all-steel forward control, 2-arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat.

Howo dump truck

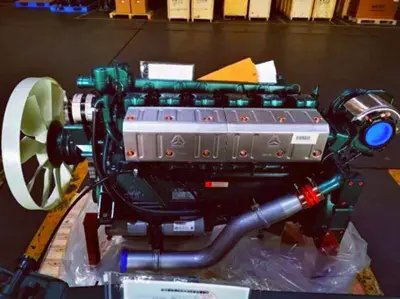

Howo dump truck top engine

The dump truck engine model is WD615.47, water-cooled, four strokes, 6 cylinders in line with water cooling, directly injection.

Howo dump truck

Configuration of Howo dump truck

Front/Rear Track (mm)	2200/1830
Overhang(front/rear) (mm)	1500/1739
Wheel base (mm)	3825+1350
Max speed（km/h）	78
Maximum gradeability (%)	40
Approach/departure Angle	19/26
Minimum turning circle (m)	20
Fuel Tank	300L
Van Dimension	5400x2300x1500 18.6 CBM Thickness : floor 8MM / Side 6MM Ventral Tipper Hydraulic Lifting

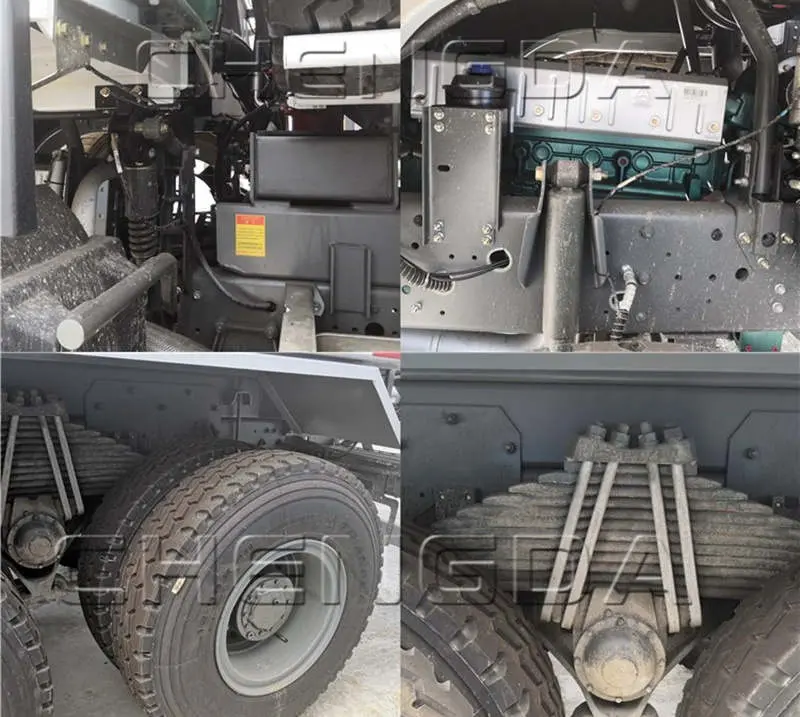

Suspension	Steer Axle : Parabolic spring with shock absorber and stabilizer Drive Axle :Parabolic spring with divided balance shaft and stabilizer
Electric System	Battery :2X12V/165Ah Alternator :28V-1500kw Starter :7.5Kw/24V

This is part of the configuration of Howo dump truck, if you want to know more detailed configuration, please contact us. We have a variety of personalized options for you, you can customize a howo dump truck that meets your actual needs.

We also sell many kinds of dump trucks. Besides Howo, we also sell brands such as Foton and Shacman, as well as some low-bed semi-trailers, dump semi-trailers and other semi-trailers.

Howo dump truck

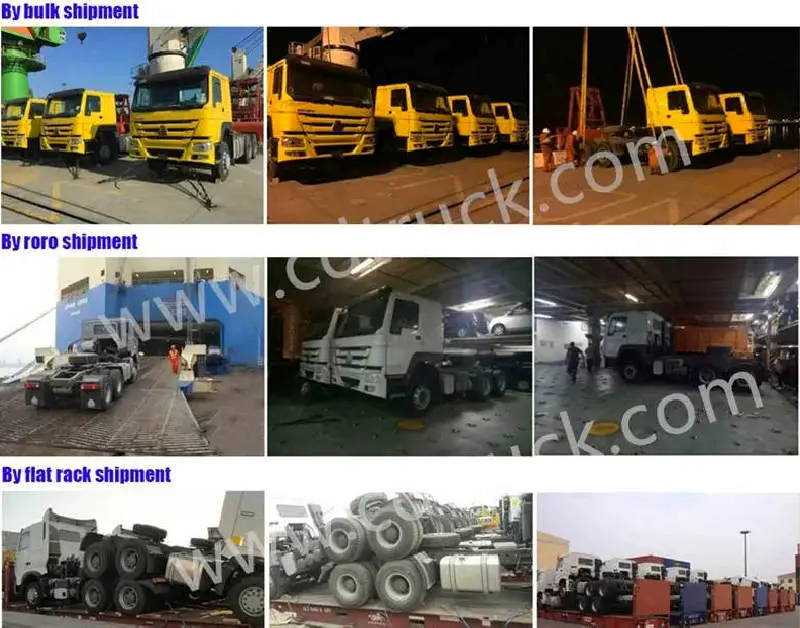

Howo dump truck packing and shipping

The shipping methods we provide are: Ro-Ro, Bulk, and Flat Rack. We will make a suitable shipping plan for you according to the actual situation. We also provide land transportation for certain countries, and we will provide you with a complete service based on the interests of our customers.
