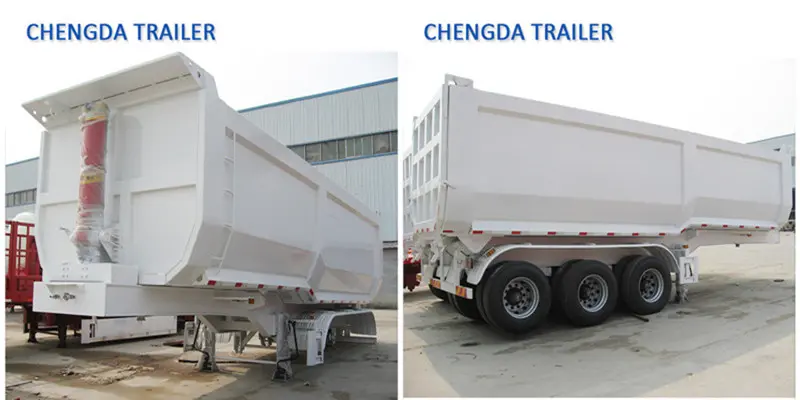

3 Axle U Shape Rear Dumper Semi Trailer

The performance and structure of the rear dump semi-trailer are our advantages, with reliable performance and reasonable structure design. The new self-dumping semi-trailer we studied has been widely recognized by many market customers. It has a reasonable structure design and compact layout, and can meet the application requirements in many fields.

Our company has developed into a brand enterprise in the production and processing of rear dump semi-trailers in China over the years. We take it as our responsibility to make high-quality and high-quality semi-trailers, and provide services for all customers who come to buy and consult. We warmly welcome new Consultation of old customers!

Contact Now

Product Details

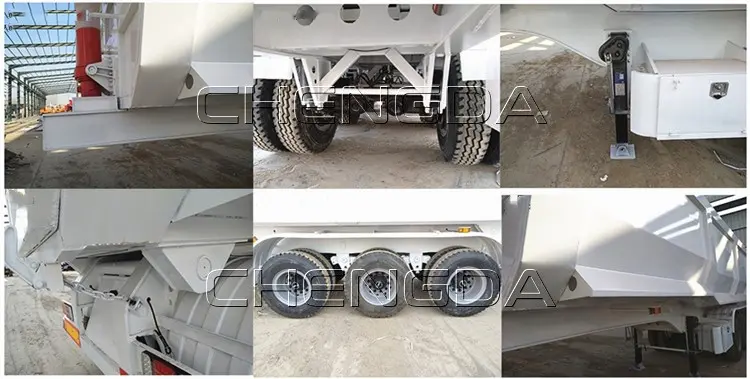

The frame and longitudinal beam of the rear dumper semi trailer are welded with high-quality steel plates. The cargo box has two types: U-shaped and rectangular. It has the characteristics of strong rigidity, good toughness, high strength, strong lifting force and strong bearing capacity.

The self-unloading methods of our rear dumper semi trailer include side-turning and backward-turning. You can choose the self-unloading method according to your needs, which increases the self-unloading function, reduces the labor intensity of workers, and improves the loading and unloading efficiency.

For the 3 Axle U Shape Rear Dumper Semi Trailer, Main beam upper plate to be 16mm thickness,down plate 18mm,middle plate 10mm. With this main bram, the dump trailer can load 50-60tons without problem. And the bucket is U shape, most been used for loading sand, gravel etc. Our raer dump trailer price is really good with high quality ensured.

Specification

Type	3 Axle Dump Semi Trailer
Loading capacity	60ton
Dimensions	9200x2500x3800mm
Main Beam	Height:500mm,Upper plate:16mm, Middle plate:10mm, Bottom plate:18mm, Material:Q345B steel
Thickness	Bottom:12mm, Side:10mm
Axle	3axles 13T/16T ,FUWA/ BPW/ ZY Brand
Lifting system	HYVA hydraulic lifting system, model:FC214-5-09030, lifting
King pin	JOST brand or Chinese brand 2.0 or 3.5 inch
Landing gear	JOST brand or Chinese brand 28tons
Suspension	Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Steel Spring	90(W)mmx13(Thickness)mmx10 layers
Tire	12.00R20 or 315/80R22.5 12 pieces

3 Axle Dumper Semi Trailer

Feature

1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons. 2>The most skilled workers make welding of this dump trailer more frequent and strong. 3>Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern transportation.

Advantage

1. The frame of the rear dumper semi trailer is welded with high-quality steel, and the frame composed of longitudinal beams and beams is strengthened, which is safer and more reliable.

2. We will choose a new type of suspension system with high strength and strong impact resistance, which makes the operation of the dump semi-trailer more stable.

3. The rear dumper semi trailer uses axles with strong bearing capacity, good mechanical properties, and is not easy to deform.

4. The safe and reliable circuit air-stop braking system is adopted, which has good braking effect and quick response.

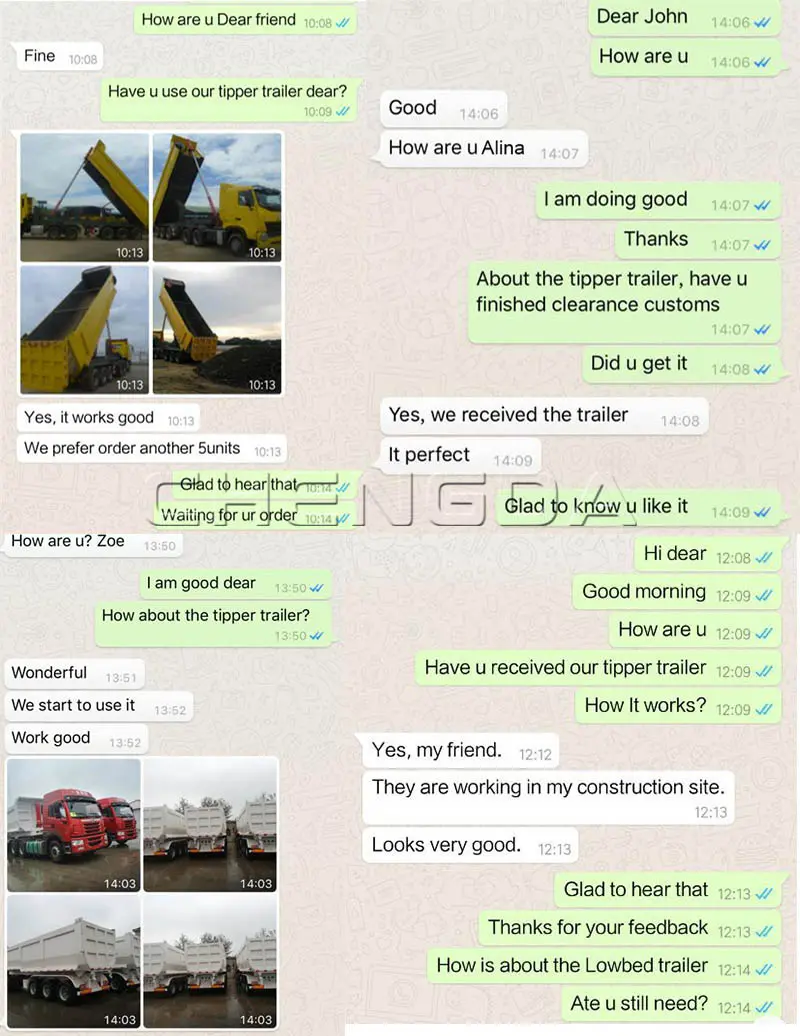

Feedback

This is the feedback of our previous customers who purchased dump semi-trailers on our products. They are satisfied with our dump semi-trailers, expressing that the unloading speed is very fast, and they are very strong and durable. I am very happy that you can click on our website. .

If you have any needs, you can send us an email, and we will arrange for a salesperson to contact you, or you can inquire! We will provide you with friendly service and excellent product quality, you will not regret your choice! ! !
