40/53 FT Expandable Container Skeleton Trailers

Chengda's expandable container skeleton trailers are made of high-strength steel, with reasonable structure, strong bearing capacity, and never deformed. Our expandable container skeleton trailers have stable performance, long life and good anti-corrosion coating. The use of high-strength steel at home and abroad reduces the tare weight and improves the transportation efficiency.

Contact Now

Product Details

40/53 FT Expandable Container Skeleton Trailers Description

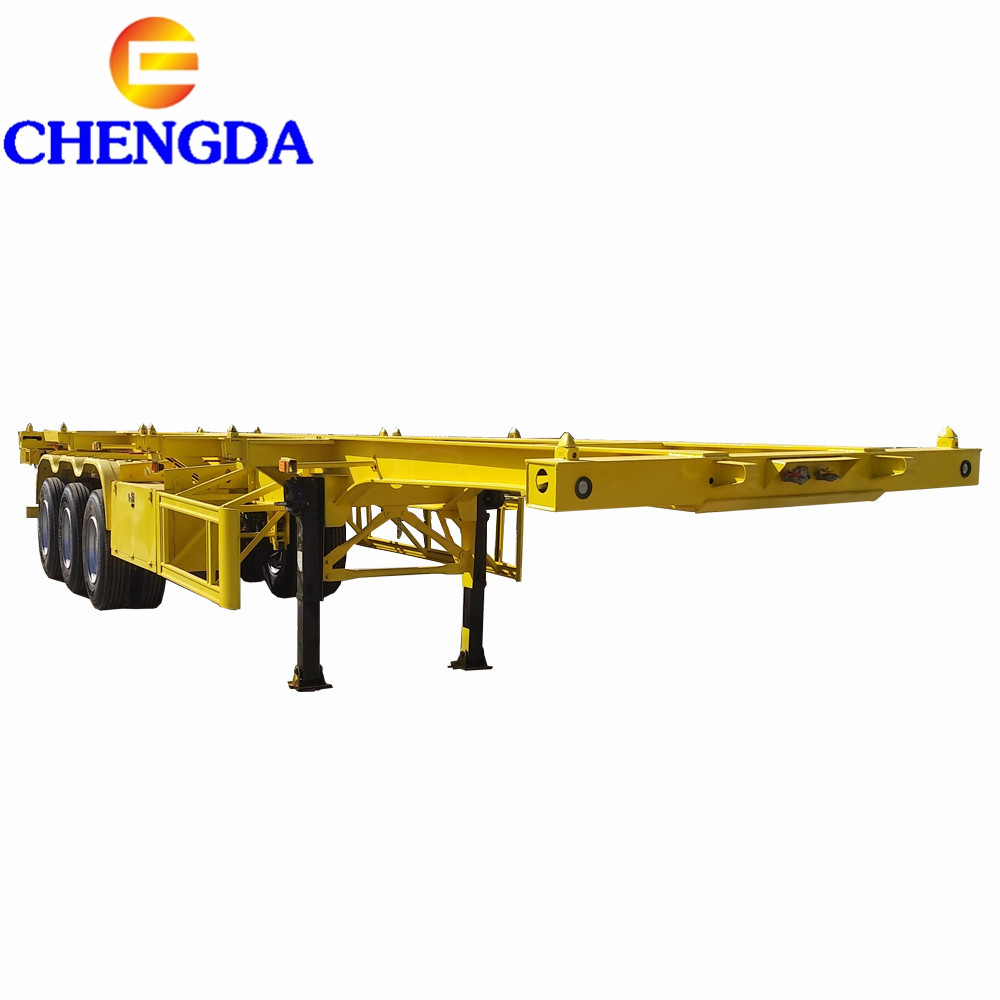

40/53 FT Expandable Container Skeleton Trailers Overview

The function of the 3-axle 40-foot skeleton semi-trailer is to carry and transport containers. Our skeleton semi-trailer adopts well-known brand axles such as Fuwa and Bpw, and accessories such as tires are provided by professional manufacturers at home and abroad, which can keep the skeleton semi-trailer better. The air suspension + disc brake we use can improve the braking response speed on the one hand, and improve the braking performance and safety on the other hand. And EBS can also reduce tire wear and improve braking comfort.

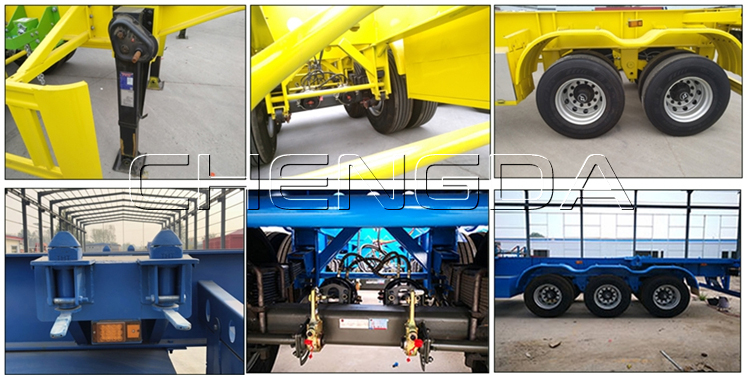

40/53 FT Expandable Container Skeleton Trailers Detail

40/53 FT Expandable Container Skeleton Trailers Detail

Chengda's new 40-foot skeleton semi-trailer adopts the configuration of the current new national standard, air suspension + disc brake. For stable performance, the axles choose BPW products. BPW is chosen because the BPW axle is more secure in terms of braking and reliability, especially in terms of braking, the thermal attenuation of the BPW braking system is relatively small.

40/53 FT Expandable Container Skeleton Trailers Specification

Type	3 Axle 40 ft Skeleton Container Semi Trailer
Loading capacity	60ton
Dimensions	12500x2300x1600mm
Main Beam	Height:500mm,Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Materil:Q345B steel
Platform	3mm diamond plate
Axle	2axles 13T/16T ,FUWA/ BPW/ ZY Brand
Container lock	12 units
King pin	JOST brand or Chinese brand 2.0 or 3.5 inch
Landing gear	JOST brand or Chinese brand 28tons
Suspension	Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Steel Spring	90(W)mmx13(Thickness)mmx10 layers
Tire	12.00R22.5 or 315/80R22.5

Feature

1. The main structure of the skeleton semi-trailer is first made of good carbon steel, which can reduce the weight of the skeleton semi-trailer and have a large payload. Unique design for optimal loading.

2. The braking system and electrical system of the skeleton semi-trailer use the best in the industry to ensure good quality and performance.

3. The chassis can be loaded with containers or ISO containers, which speeds up the transportation speed and reduces the transportation cost.

Our suggested shipping options

Bulk: is the cheapest shipping method, not as good as Ro-Ro and container in terms of cargo protection
Ro-Ro: small cargo damage and strong timeliness
Container: Two trailers are transported in a 40' tall container, the gooseneck needs to be cut.
